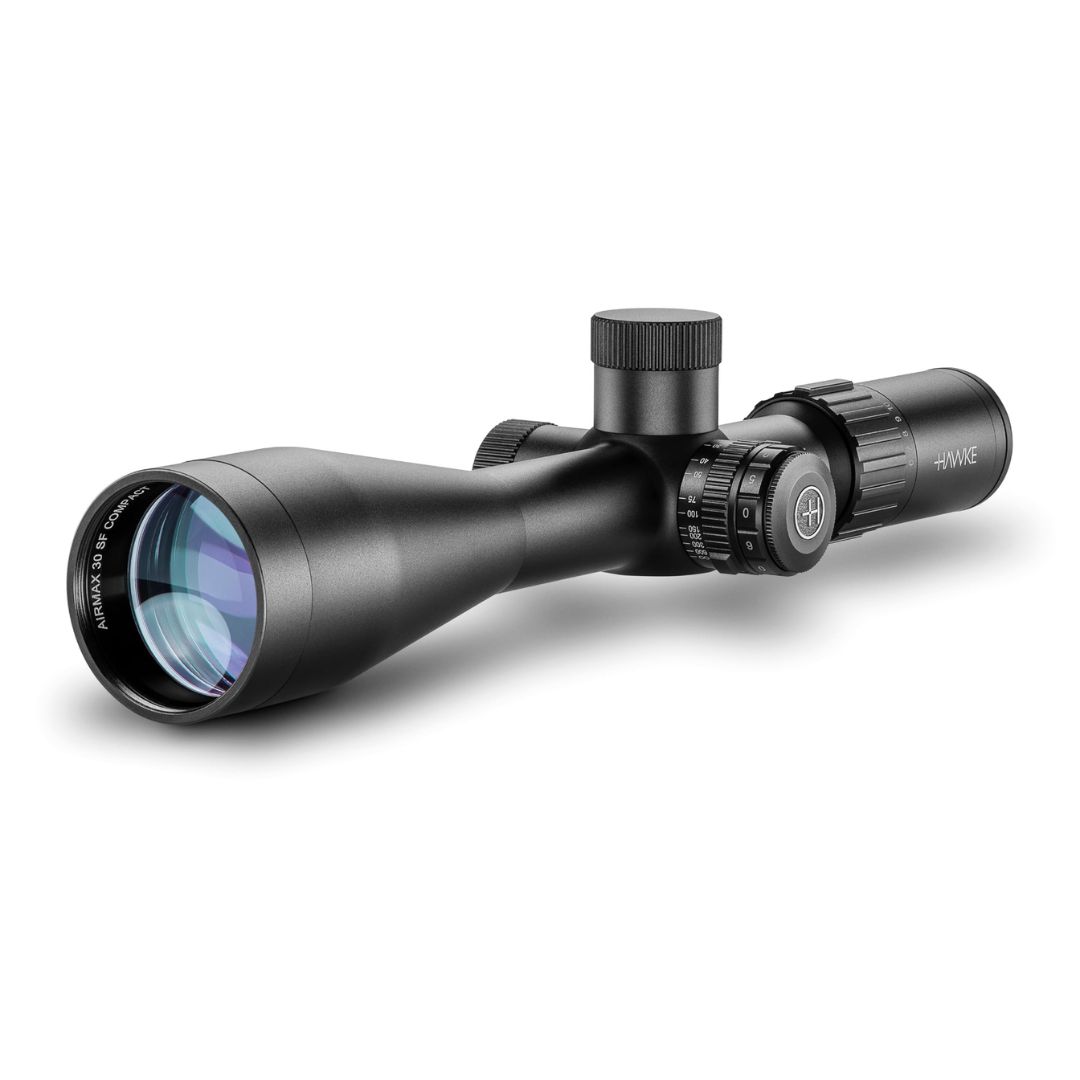

WIN A: Hawke Airmax 30 SF 6-24x50 AMX IR COMPACT Rifle Scope
| Product Name A-Z | WIN A: Hawke Airmax 30 SF 6-24x50 AMX IR COMPACT Rifle Scope |
|---|---|
| SKU | OPTICSDRAWS#344 |
Specs

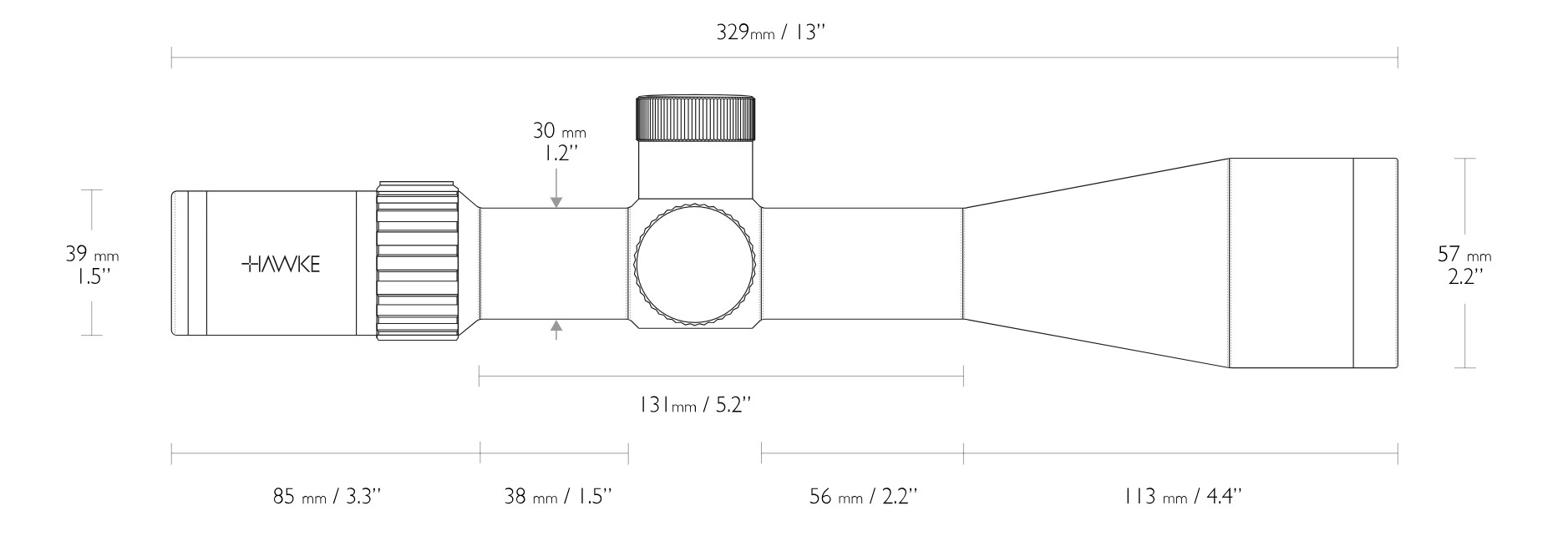

- Length: 329mm 13"
- Weight: 670g 23.6oz
- Eye relief: 76mm 3"
- Focus/Parallax - Side Focus: 9m - ∞ 10yds - ∞
- Field of View: 7.3 - 1.8m @100m 21.9 - 5.5ft @100yds
- Exit Pupil: 8.3-2.1mm 0.33-0.08"
- Chassis: 30mm Mono-tube
- Optical System: 6-24×
- Objective: 50mm
- Illumination: Red
- Reticle: AMX IR
- Elevation Increment: 1⁄10 MRAD
- Elevation Adjustment Range: 16 MRAD
- Windage Increment: 1⁄10 MRAD
- Windage Adjustment Range: 16 MRAD
- Material: Aluminium
- Ocular Type: Fast Focus
- Lens Coating: Fully Multi-Coated - 16 Layers
- Power Selector Style: Rubber Coated Posi-Grip
- Focal Plane: Second Focal Plane (SFP)
- Turret Caps: Yes
- Turret Type: Capped Target Turrets
- Hawke Worldwide Warranty
- Made in China

Features
- Capped Low-Profile Turrets
- 30mm
- Wide Angle
- Side Focus
- Illumination
- 11 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell
- AMX Reticle Designed For Airguns
- Nitrogen purged
- Shockproof
- Waterproof
- Fog proof
- All calibre rated
Reticle
AMX RETICLE:
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil-Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories. Half Mil Dot spacing on the lower post provides increased aim points for long shots. The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5, and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
Video
In the box?
- Instruction Manual
- Reticle Booklet
- Lens Cloth
- Bikini Style Lens Covers
- 3" Sidewheel
- CR2032 Battery
Warranty
- Hawke Worldwide Warranty
